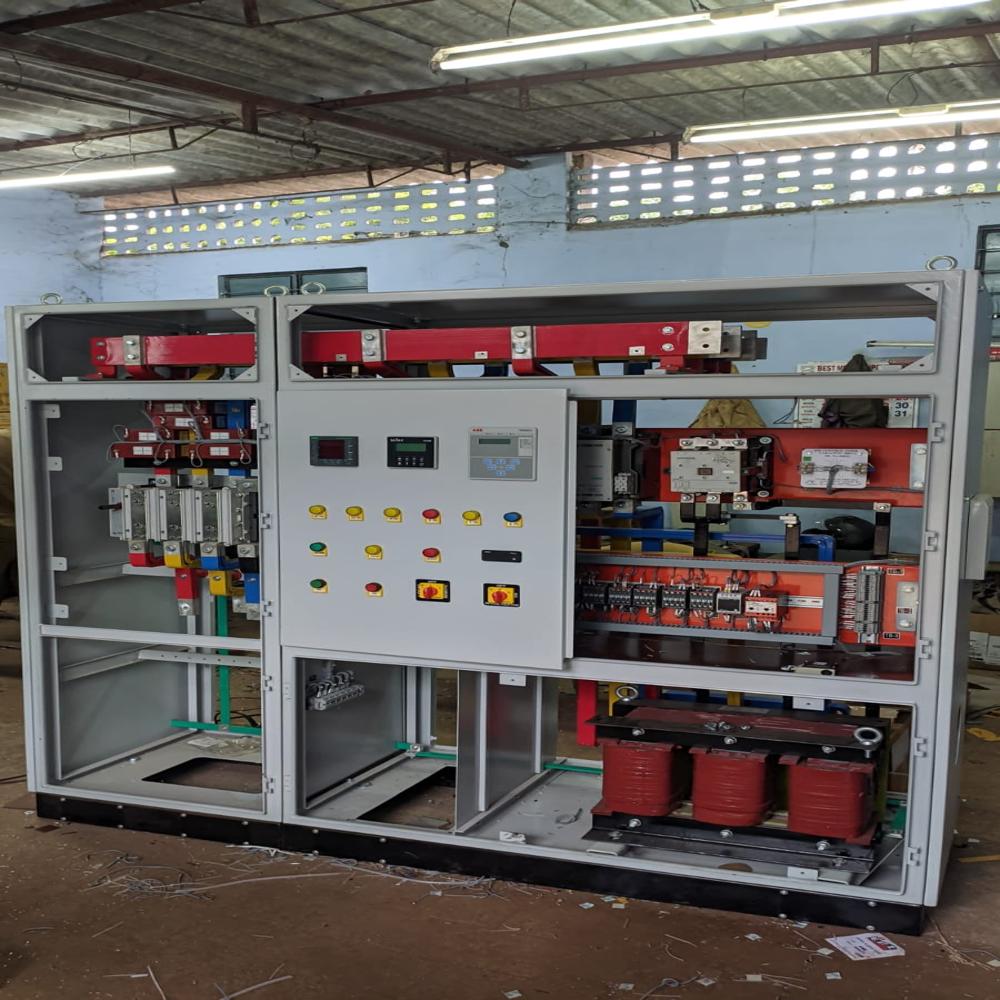

3 Phase Motor Starter

• Application
• Industrial Motor Control

• Color
• Grey/Red

• Connection Type
• Hard Wired

• Connector Type
• Terminal Strip

• Dimension (L*W*H)
• 1500mm x 600mm x 2000mm

• Efficiency
• Up to 92%

• Energy Consumption
• Low

• Feature
• Overload Protection, Short Circuit Protection, Automatic/Manual Control

• Frequency (MHz)
• 50 Hz

• Humidity %
• Up to 95% RH

• IP Rating
• IP54

• Input Voltage
• 415 V AC

• Insulation Material
• PVC/FRLS Wire

• Material
• Mild Steel (MS)

• Mounting Type
• Floor Mounted

• No Of Poles
• 3

• Operating Temperature
• -10C to 45C

• Output Type
• Relay/Contactor Driven

• Overheating Protection
• Other, Enabled

• Phase
• 3 Phase

• Power Factor
• 0.98

• Product Type
• Motor Control Panel

• Protection Level
• Other, High

• Rated Voltage
• 415 V AC

• Shape
• Rectangular

• Size
• Standard

• Surface Finish
• Powder Coated

• Weight
• 120 kg (approx.)

• Application
• Industrial Motor Control, Pump & Compressor Automation

• Color
• Grey/Orange

• Connection Type
• Terminal/Bus Bar

• Connector Type
• Screw Terminal

• Dimension (L*W*H)
• 500mm x 400mm x 200mm

• Efficiency
• >95%

• Energy Consumption
• Optimized Consumption

• Feature
• Overload Protection, Short Circuit Protection, Easy Maintenance

• Frequency (MHz)
• 50/60 Hz

• Humidity %
• Max 95%, Non-condensing

• IP Rating
• IP54

• Input Voltage
• 415V AC

• Insulation Material
• PVC

• Material
• Mild Steel (MS)

• Mounting Type
• Wall Mount

• No Of Poles
• 3

• Operating Temperature
• -10C to 55C

• Output Type
• AC

• Overheating Protection
• YES

• Phase
• 3 Phase

• Power Factor
• >0.95

• Product Type
• Drive Panel

• Protection Level
• Other, High

• Rated Voltage
• 415 V

• Shape
• Rectangular

• Size
• Medium

• Surface Finish
• Powder Coated

• Weight
• 22 kg

• Application
• Industrial, Commercial Power Distribution

• Color
• Grey

• Connection Type
• Hardwired

• Connector Type
• Copper Bus Bars

• Dimension (L*W*H)
• 1200mm x 900mm x 300mm (Approx.)

• Efficiency
• Up to 98%

• Feature
• Rugged Construction, Weatherproof, Powder Coated

• Frequency (MHz)
• 50/60 Hz

• Humidity %
• Up to 95% Non-Condensing

• IP Rating
• IP54

• Input Voltage
• 415V AC

• Insulation Material
• PVC/XLPE Coated

• Material
• Mild Steel (MS)

• Mounting Type
• Wall Mounted

• No Of Poles
• 3

• Operating Temperature
• -10C to +55C

• Output Type
• Three Phase Output

• Overheating Protection
• Other, Provided by Fuse & Circuit Breakers

• Phase
• 3 Phase

• Power Factor
• 0.9 - 1.0

• Product Type
• Service Panel

• Protection Level
• Other, High Protection against Overloads

• Rated Voltage
• 415V AC

• Shape
• Rectangular

• Size
• Standard/Custom

• Surface Finish
• Powder Coated

• Weight
• Approx 30-50 kg
