APFC Control Panel

• Application
• Industrial Power Factor Correction

• Base Material
• Mild Steel

• Cabinet Material
• CRCA Steel

• Components
• Heavy Duty Contactors, MCBs, APFC Relay, Capacitors, Busbars

• Connectivity Type
• Wired

• Control System
• Microprocessor Based

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, MS/CRCA Sheet

• Current Rating
• 65 A

• Dimension (L*W*H)
• 700 x 600 x 250 mm

• Display Type
• Other, LED/LCD Digital Meter

• Features
• Auto Power Factor Correction, Overload, & Short Circuit Protection

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42

• Material
• Other, Mild Steel (CRCA)

• Maximum Output Current
• 65 A

• Operating Voltage
• 415-440 V

• Panel Type
• Floor Mounted

• Product Type
• Other, APFC Control Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42

• Rated Current
• 65 A

• Rated Insulation Voltage
• 660 V

• Rated Operation Voltage
• 415/440 V AC

• Rated Voltage
• 440 V

• Standard
• IS 8623 / IEC-61439

• Surface Color
• Other, Grey / Siemens Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• 6 Stage

• Application
• Industrial / Commercial Power Distribution

• Base Material
• Other, CRCA Steel

• Cabinet Material
• CRCA Steel

• Components
• Contactor, Capacitors, MCB, MCCB, APFC Relay

• Connectivity Type
• Panel Mounted

• Control System
• Microprocessor Based Relay

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, CRCA Steel

• Current Rating
• Up to 100 A

• Dimension (L*W*H)
• 800 x 600 x 300 mm (Approx.)

• Display Type
• Other, Digital LED/LCD Display

• Features
• Automatic Power Factor Correction, Heavy Duty Capacitors, Easy Maintenance

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42

• Material
• Other, CRCA Steel

• Maximum Output Current
• Approx. 83 A

• Operating Voltage
• 415 V AC

• Panel Type
• Automatic Power Factor Correction

• Product Type
• Other, APFC Control Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42

• Rated Current
• Up to 100 A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V

• Standard
• IS 8623 / IEC 61439

• Surface Color
• Other, Gray

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 6 Way

• Application
• Industrial / Commercial

• Base Material
• Other, CRCA Sheet Metal

• Cabinet Material
• CRCA Steel

• Components
• Contactor, Capacitor, Microcontroller, MCCB

• Connectivity Type
• Panel Mount Wired

• Control System
• Microcontroller Based

• Cooling System
• Air Vents

• Cover Material
• Other, Powder Coated CRCA

• Current Rating
• 55 A

• Dimension (L*W*H)
• 600 x 500 x 250 mm

• Display Type
• Other, LCD Digital Meter

• Features
• Automatic, Heavy Duty, Overload Protection

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42

• Material
• Other, CRCA Steel

• Maximum Output Current
• 55 A

• Operating Voltage
• 415 V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Automatic Power Factor Correction Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42

• Rated Current
• 55 A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V

• Standard
• IS 8623 / IEC 61439

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Other, Glossy

• Thickness
• 1.6 mm

• Way
• 6 Stage

• Application

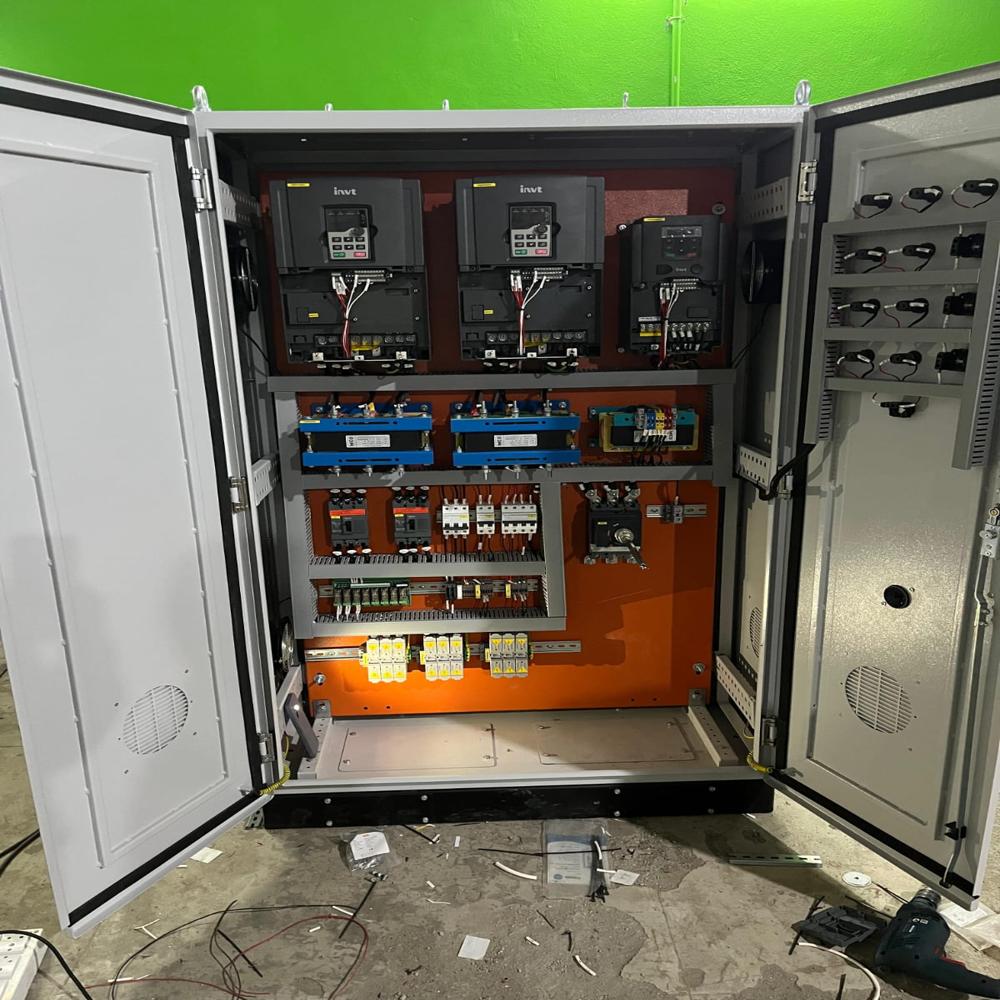

• Converting Single Phase to Three Phase for 10HP motors, machinery

• Base Material
• Mild Steel

• Cabinet Material
• MS Sheet

• Components
• MCBs, Contactors, Relays, Indicator Lamps, Emergency Stop

• Connectivity Type
• Hardwired Terminal Blocks

• Control System
• Manual & Automatic Mode

• Cooling System
• Natural Air Cooling with Vent Grills

• Cover Material
• Other, Powder Coated MS

• Current Rating
• 22A

• Dimension (L*W*H)
• 1200mm x 800mm x 300mm

• Display Type
• Other, LED Indicator Lamps

• Features
• Heavy Duty, Robust Construction, Easy Operation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 22A

• Operating Voltage
• 220/230V AC Input

• Panel Type
• Floor Mounted Electrical Panel

• Product Type
• Other, Single to Three Phase Converter Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 22A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm Cabinet Sheet

• Way
• 3 Way Output

• Application
• Industrial, Commercial Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• ACB, MCB, Control Relays, Indicators, Meter, Emergency Stop

• Connectivity Type
• Hardwired

• Control System
• Manual / Auto

• Cooling System
• Natural Air Cooling

• Cover Material
• Mild Steel

• Current Rating
• 4000A

• Dimension (L*W*H)
• Custom as per requirement

• Display Type
• Other, Digital Meter Display

• Features
• Dust Proof, Anti-Corrosive, Easy Maintenance, High Reliability

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Mild Steel

• Maximum Output Current
• 4000A

• Operating Voltage
• 415V AC

• Panel Type
• Air Circuit Breaker Panel

• Product Type
• Other, ACB Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 4000A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC/IS 61439

• Surface Color
• Other, Beige / Off-White

• Surface Finish
• Powder Coated

• Thickness
• 2mm

• Way
• Single / Multiple ways

• Application

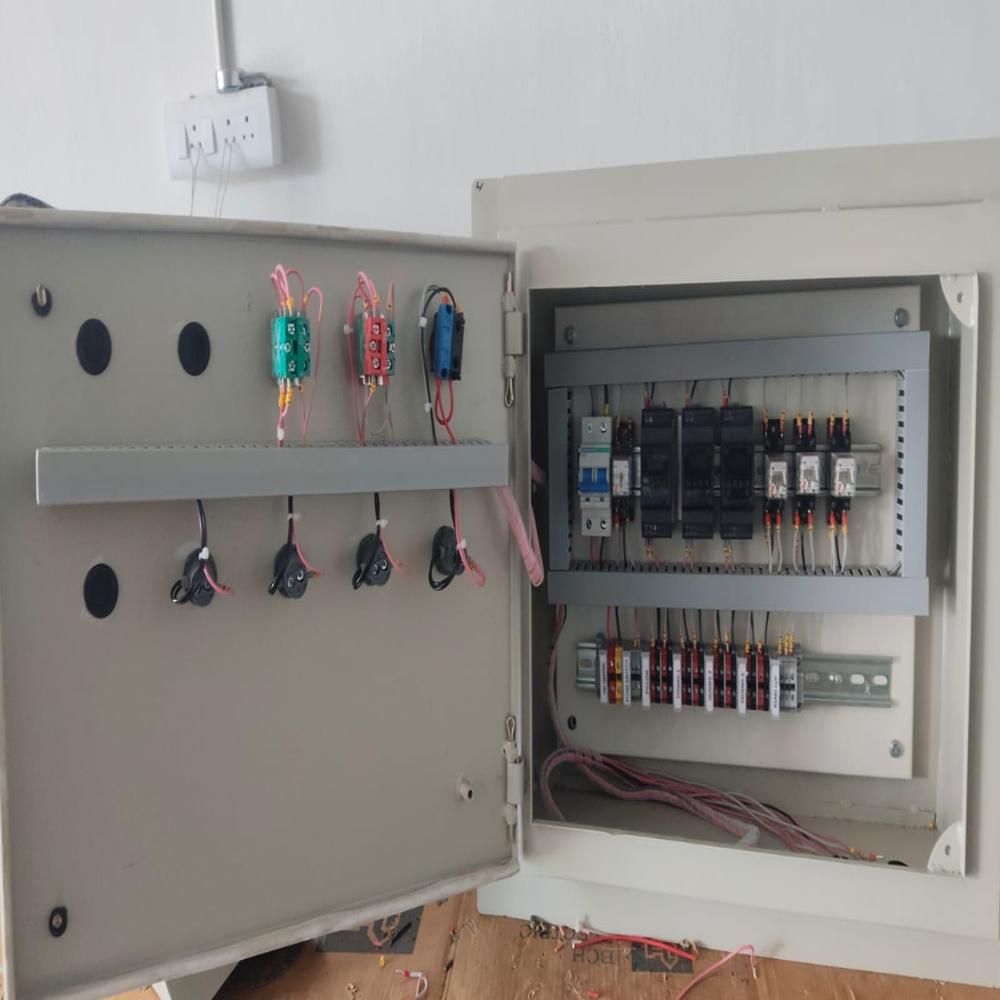

• Water Treatment Plants, Pump Controls

• Base Material
• Mild Steel

• Cabinet Material
• Powder Coated Mild Steel

• Components
• MCB, Contactor, Overload Relay, Push Buttons, Indicator lamps

• Connectivity Type
• Wired terminals

• Control System
• Manual/Automatic

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Mild Steel/Glass on request

• Current Rating
• Up to 50A

• Dimension (L*W*H)
• Customized as per requirement

• Display Type
• Other, Indicator Lamp

• Features
• Corrosion Resistant, Sturdy Construction, Easy Installation

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Ip54

• Material
• Mild Steel

• Maximum Output Current
• Up to 50A

• Operating Voltage
• 220V/230V AC

• Panel Type
• Wall Mount

• Product Type
• Other, Water Treatment Control Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Up to 50A

• Rated Insulation Voltage
• 660V AC

• Rated Operation Voltage
• 230V/415V AC

• Rated Voltage
• 230/415V AC

• Standard
• IEC

• Surface Color
• Other, Light Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6mm to 2mm

• Way
• Multi-way

• Application
• Residential/Industrial Power Distribution

• Base Material
• Other, Sheet Metal

• Cabinet Material
• Mild Steel

• Components
• Meter Chamber, Fuse Chamber, Cable Chamber

• Connectivity Type
• Cable/Terminal

• Control System
• Manual Switches

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Powder Coated Metal

• Current Rating
• 100A

• Dimension (L*W*H)
• 900mm x 600mm x 200mm (Approx.)

• Display Type
• Other, Analog/Window Meter Display

• Features
• Fire Chamber, Easy Installation, Sturdy Design

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 100A

• Operating Voltage
• 230V AC

• Panel Type
• Meter Panel

• Product Type
• Other, Single Phase Service Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42

• Rated Current
• 100A

• Rated Insulation Voltage
• 500V

• Rated Operation Voltage
• 230V

• Rated Voltage
• 230V AC

• Standard
• IS 8623, IEC 61439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm MS sheet

• Way
• 6 Way
