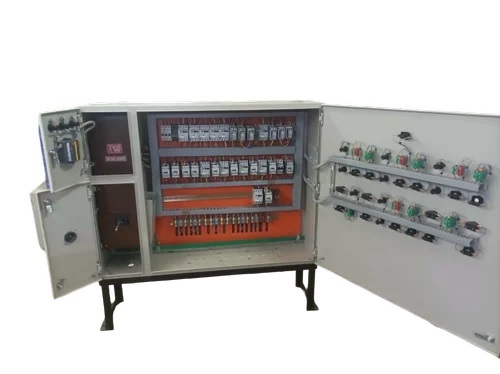

LT Distribution Panel

• Application
• Industrial Motor Control

• Color
• Grey

• Connection Type
• Screw Terminal

• Connector Type
• Copper Lugs

• Dimension (L*W*H)
• 180 x 120 x 110 mm

• Efficiency
• 95%

• Energy Consumption
• Standard

• Feature
• Overload Protection

• Frequency (MHz)
• 50 Hz

• Humidity %
• 95% (Max, Non-Condensing)

• IP Rating
• IP44

• Input Voltage
• 415 V AC

• Insulation Material
• Bakelite

• Material
• Mild Steel

• Mounting Type
• Wall Mount

• No Of Poles
• 3

• Operating Temperature
• -10C to 55C

• Output Type
• Direct On Line (DOL)

• Overheating Protection
• YES

• Phase
• Three Phase

• Power Factor
• 0.95

• Product Type
• Motor Starter

• Protection Level
• Other, IP44

• Rated Voltage
• 415 V

• Shape
• Rectangular

• Size
• Standard

• Surface Finish
• Powder Coated

• Weight
• 1.5 kg

• IP Rating
• Other, IP65

• Panel Type
• Automatic Control Panel Board

• Rated Current
• 100A

• Rated Voltage
• 230V

• Application
• Metering, Power Distribution, Industrial, Commercial

• Base Material
• Mild Steel

• Cabinet Material
• CRCA Sheet Steel

• Components
• CTs, Switches, Busbar, MCB/MCCB, Fuses

• Connectivity Type
• Terminal / Busbar Connection

• Control System
• Manual / Automatic (Optional)

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• 100A to 630A

• Dimension (L*W*H)
• Customizable as per site

• Display Type
• Other, Analog / Digital Meter (Optional)

• Features
• Rugged Construction, Safe Operation, Lock & Key Provision, Cable Entry from Bottom

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42 / IP54

• Material
• Other, CRCA Sheet Steel

• Maximum Output Current
• 630A

• Operating Voltage
• 415V AC

• Panel Type
• Indoor, Floor Mounted

• Product Type
• Other, LTCT Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP54

• Rated Current
• Up to 630A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IS 8623 / IEC 61439

• Surface Color
• Other, Light Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6mm - 2mm

• Way
• As per requirement (Multiple ways available)
