PLC Control Panel

• Application
• Industrial Automation

• Base Material
• Mild Steel

• Cabinet Material
• Powder Coated Mild Steel

• Components
• SBR PLC, MCB, Relays, Indicators

• Connectivity Type
• Ethernet IP

• Control System
• Programmable Logic Controller (PLC)

• Cooling System
• Natural Air Vented

• Cover Material
• Mild Steel

• Current Rating
• 20 A

• Dimension (L*W*H)
• 900 x 600 x 300 mm

• Display Type
• Other, LED Indication

• Features
• Short circuit protection, Overload protection, Modular design

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Mild Steel

• Maximum Output Current
• 20 A

• Operating Voltage
• 415 V

• Panel Type
• Wall Mounted

• Product Type
• Other, PLC Control Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 20 A

• Rated Operation Voltage
• 415 V AC

• Rated Voltage
• 415 V AC

• Standard
• IEC Standard

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Way
• Single Way

• Application
• Industrial power distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel, Powder Coated

• Components
• MCB, MCCB, Meter, Busbar, Relays, Indicator, CT, PT

• Connectivity Type
• Terminal and Busbar based

• Control System
• Manual & Automatic control options

• Cooling System
• Air-cooled, natural ventilation

• Cover Material
• Other, Powder Coated MS Sheet

• Current Rating
• Up to 6300A

• Dimension (L*W*H)
• Custom, based on design (approx. shown: 8m x 0.8m x 2.2m)

• Display Type
• Other, Digital Meter Display

• Features
• Easy maintenance, modular design, high durability, safety locks

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• Up to 6300A

• Operating Voltage
• 415V AC

• Panel Type
• Indoor, Floor Mounted

• Product Type
• Other, Main Voltage Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Up to 6300A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC, IS, or as per client requirement

• Surface Color
• Other, Light Grey with Blue Panels

• Surface Finish
• Powder Coated

• Thickness
• 2 mm (Cabinet Sheet)

• Way
• Multi-way, customizable

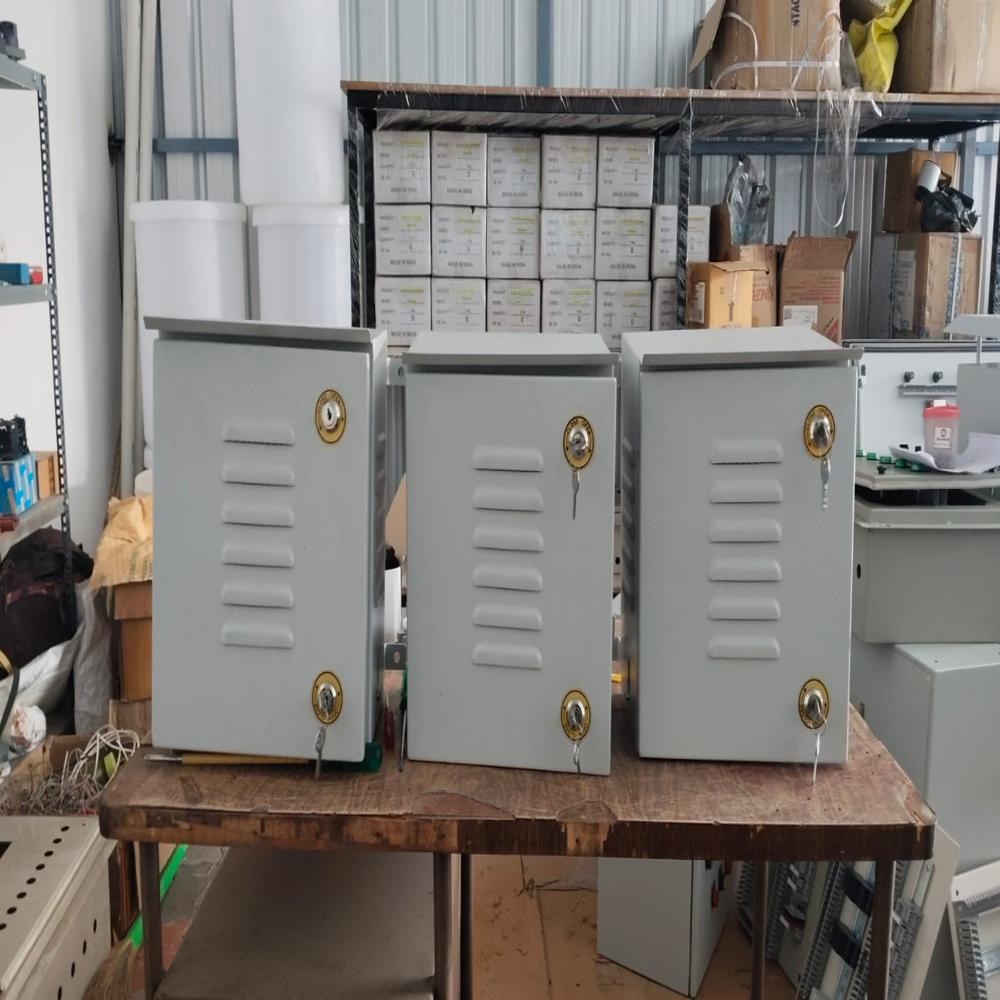

• Application
• Motor Control, Pump Control

• Base Material
• Other, MS Sheet

• Cabinet Material
• Mild Steel

• Components
• Drive, MCB, Contactor, Terminal blocks

• Connectivity Type
• Wired

• Control System
• Automatic/Manual

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, MS Sheet

• Current Rating
• 5A

• Dimension (L*W*H)
• 400x300x150 mm

• Display Type
• Digital

• Features
• Lockable doors, Indicator lights, Overload protection

• Frequency (MHz)
• 50-60Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 5A

• Operating Voltage
• 220-240V AC

• Panel Type
• Wall Mounted

• Product Type
• Other, Single Phase Drive Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 1 HP

• Rated Insulation Voltage
• 250V

• Rated Operation Voltage
• 230V

• Rated Voltage
• 230V AC

• Standard
• IEC standard

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.2 mm

• Way
• Single Way
